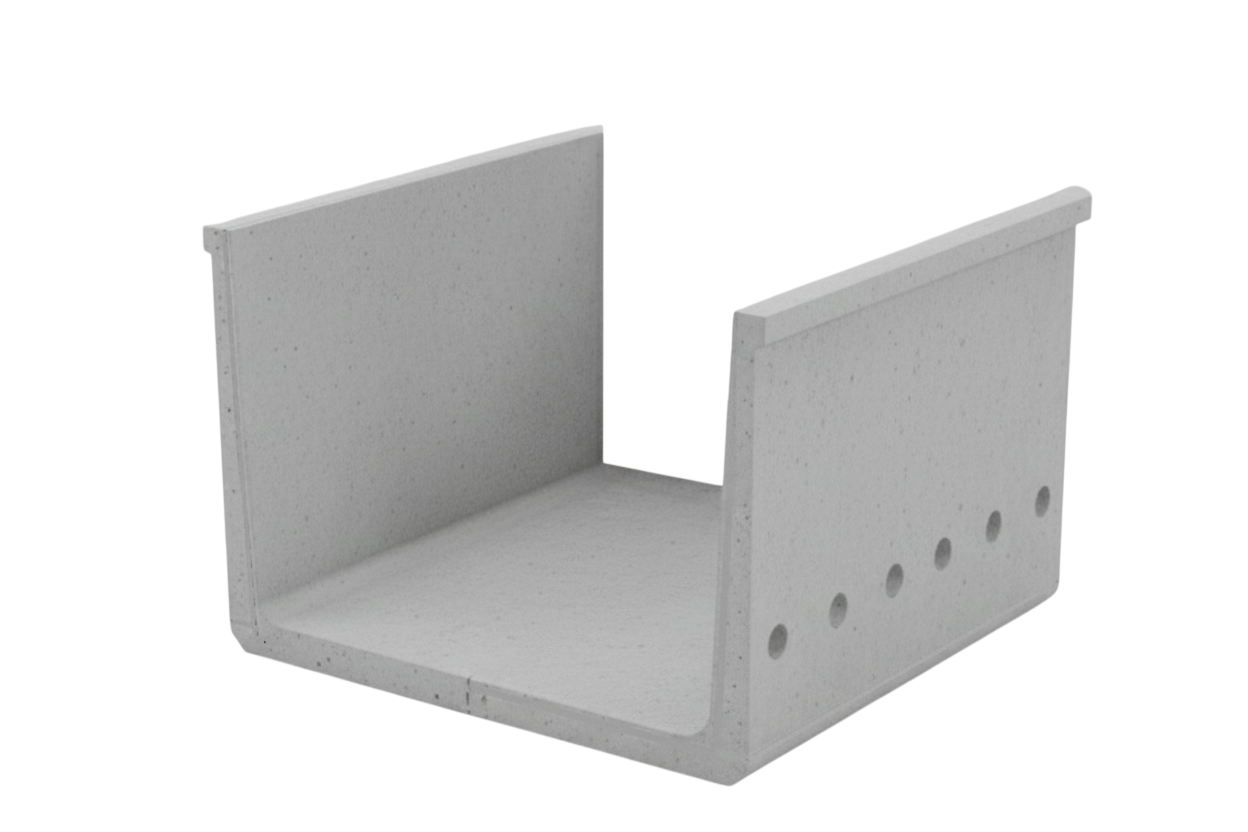

排水フリューム
排水フリューム 新潟県農地部対応型

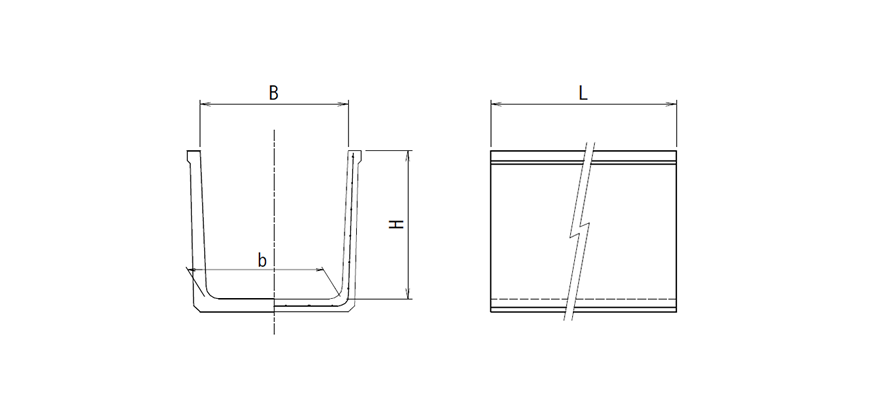

規格寸法図
規格諸元
| 規格(H×B) | 寸法(mm) | 排水孔孔数(孔) | 参考質量(kg) | ||
|---|---|---|---|---|---|
| H | B | b | |||
| 300×300 | 300 | 300 | 260 | 8 | 190 |
| 400×300 | 400 | 300 | 260 | 8 | 260 |
| 400×400 | 400 | 400 | 360 | 8 | 280 |
| 500×400 | 500 | 400 | 360 | 8 | 360 |
| 600×400 | 600 | 400 | 350 | 8 | 440 |
| 600×500 | 600 | 500 | 450 | 8 | 470 |
| 600×600 | 600 | 600 | 550 | 8 | 500 |
| 800×600 | 800 | 600 | 530 | 12 | 710 |
| 800×800 | 800 | 800 | 730 | 12 | 770 |
| 1,000×800 | 1,000 | 800 | 720 | 12 | 1,130 |
| 1,000×1,000 | 1,000 | 1,000 | 920 | 12 | 1,210 |
大型排水フリューム 新潟県農地部対応型

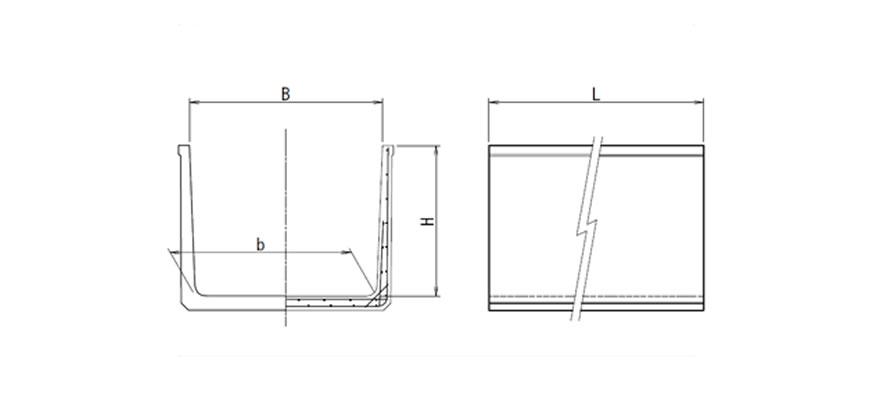

規格寸法図
規格諸元
| 規格(H×B) | 寸法(mm) | 排水孔孔数(孔) | 参考質量(kg) | |||
|---|---|---|---|---|---|---|
| H | B | b | L | |||
| 1,000×1,200 | 1,000 | 1,200 | 1,120 | 2,000 | 12 | 1,290 |
| 1,000×1,300 | 1,000 | 1,300 | 1,220 | 2,000 | 12 | 1,330 |
| 1,000×1,500 | 1,000 | 1,500 | 1,420 | 2,000 | 12 | 1,420 |
| 1,000×1,700 | 1,000 | 1,700 | 1,620 | 2,000 | 12 | 1,500 |
| 1,000×1,900 | 1,000 | 1,900 | 1,820 | 2,000 | 12 | 1,590 |
| 1,000×2,000 | 1,000 | 2,000 | 1,920 | 2,000 | 12 | 1,630 |
| 1,200×1,200 | 1,200 | 1,200 | 1,100 | 2,000 | 12 | 1,740 |
| 1,200×1,300 | 1,200 | 1,300 | 1,200 | 2,000 | 12 | 1,790 |
| 1,200×1,500 | 1,200 | 1,500 | 1,400 | 2,000 | 12 | 1,890 |
| 1,200×1,700 | 1,200 | 1,700 | 1,600 | 2,000 | 12 | 2,000 |
| 1,200×1,900 | 1,200 | 1,900 | 1,800 | 2,000 | 12 | 2,100 |
| 1,200×2,000 | 1,200 | 2,000 | 1,900 | 2,000 | 12 | 2,150 |
| 1,200×2,200 | 1,200 | 2,200 | 2,100 | 2,000 | 12 | 2,250 |
| 1,400×1,500 | 1,400 | 1,500 | 1,390 | 2,000 | 12 | 2,440 |
| 1,400×1,800 | 1,400 | 1,800 | 1,690 | 2,000 | 12 | 2,620 |
| 1,400×2,000 | 1,400 | 2,000 | 1,890 | 2,000 | 12 | 2,740 |
| 1,400×2,200 | 1,400 | 2,200 | 2,090 | 2,000 | 12 | 2,870 |
| 1,400×2,400 | 1,400 | 2,400 | 2,090 | 2,000 | 12 | 2,990 |
| 1,500×1,500 | 1,500 | 1,500 | 1,380 | 2,000 | 12 | 2,760 |
| 1,500×1,800 | 1,500 | 1,800 | 1,680 | 2,000 | 12 | 2,960 |
